N-BK7 Mounted Plano-Concave Lenses, ARB2-NIR

Our mounted plano-concave lenses, crafted from high-quality N-BK7, integrate seamlessly into LINOS Microbench and Nanobench systems. These lenses deliver precise optical performance for applications that require controlled beam divergence. The narrow focal-length tolerances of our plano-concave lenses ensure consistent system integration and reliable optical behavior.

The ARB2 NIR broadband anti-reflection coating provides high transmission across 725–1050 nm and excellent laser-damage resistance, offering a high damage threshold and reliable performance under demanding conditions.

ZEMAX files are supplied to assist with optical design and simulation. For customized requirements or higher-volume manufacturing, contact us to request a quote tailored to your technical specifications.

Note: f = focal length (object side), f' = focal length (image side) , s = object distance, s' = back focal length, Ø = lens diameter, dm = center thickness, dr = edge thickness, h = primary vertex (h=dm-dr-h'), F, F' = focal points, H, H' = principal points; Tolerances: focal length f: ±2% image distance s': ±2%

Note: Dmech: mechanical size, DCA: clear aperture, Doptical: optical size, RR: retaining ring

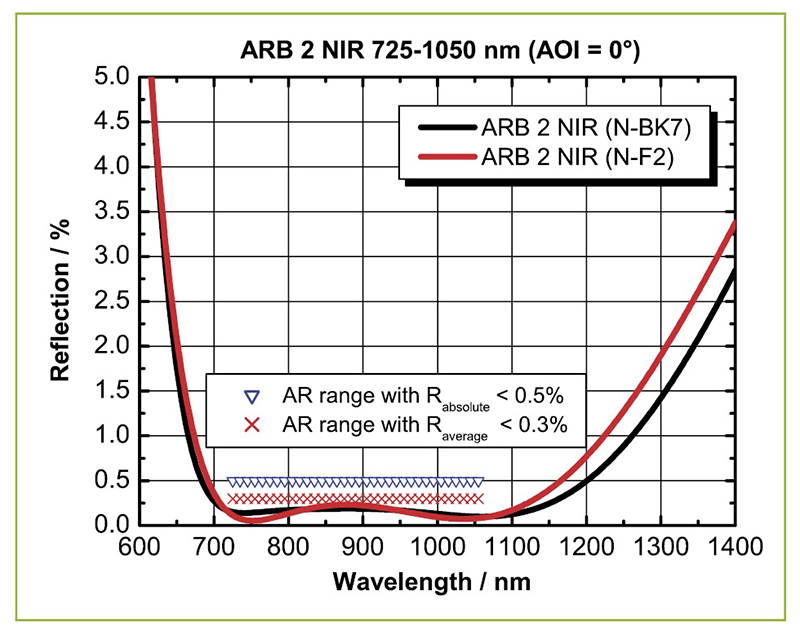

Specifications broadband anti-reflective coating ARB2 NIR:

Guaranteed residual reflection < 0.5 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range Typical average residual reflection < 0.3 % for angles of incidence 0° ≤ AOI ≤ 15° in the AR range Damage threshold: H_∞ > 30 J / cm² for 11 ns laser pulses (s‑on‑1) at 1064 nm and 10 Hz AR range typical: 725–1050 nm Design adaptable to the spectral range of 600 nm ≤ λ ≤ 1400 nm and to higher angles of incidence.
