PYD 2592 Dual-Element Low-Power SMD DigiPyro
PART/ PYD 2592

PYD 2592 Dual-Element Low-Power SMD DigiPyro

This Dual-Element Pyrodetector features two standard elements in parallel connection designed into a compact SMD (surface mount) housing with optical window. In alignment with our innovative low power DigiPyro detectors family, this design streamlines integration to the host system with significantly reduced form factor. The integrated motion detection unit and interrupt features are perfect for battery operated applications.

Contact Us Find a Distributor

This Pyrodetector in SMD housing is part of the low power DigiPyro® family. An internal integrated circuitry converts the element signals into a 14 bit digital data which can be viewed through the digital interface. The sensor includes a fully configurable motion detection unit with an interrupt feature to wake up a sleeping host system. This allows for lowest power consumptions and is therefore ideally suitable for battery operated devices.

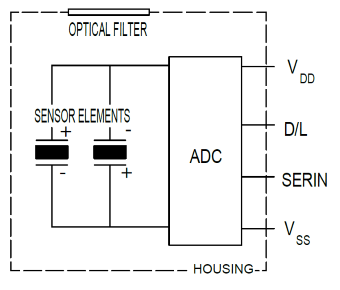

PYQ 2592 Diagram
  • Responsivity: 3.7 kV/W (typical)
  • Noise: 4 digits (typ), 12 digits (max)
  • Operation requirements: 1.8-3.6 V / 3 µA
  • Housing with optical window:  SMD , 7x5 mm
  • Field-of-view (horiz/vert): 146°/130°
  • Responsivity: 3.7 kV/W (typical)
  • Noise: 4 digits (typ), 12 digits (max)
  • Operation requirements: 1.8-3.6 V / 3 µA
  • Housing with optical window:  SMD , 7x5 mm
  • Field-of-view (horiz/vert): 146°/130°
