N-BK7 Mounted Plano-Concave Lenses, ARB2-YAG

Our mounted plano-concave lenses, made from high-quality N-BK7, integrate seamlessly with LINOS Microbench and Nanobench systems. They deliver precise optical performance for applications that require controlled beam divergence. Tight focal-length tolerances ensure consistent integration and reliable optical behavior.

The high-power, narrowband anti-reflection coating maximizes transmission at the fundamental Nd:YAG wavelength of 1064 nm and offers excellent laser-damage resistance, ensuring a high damage threshold and reliable performance in demanding environments.

ZEMAX files are provided to streamline optical design and simulation. For customized specifications or higher-volume production, contact us to request a quotation tailored to your technical requirements.

Note: f = focal length (object side), f' = focal length (image side) , s = object distance, s' = back focal length, Ø = lens diameter, dm = center thickness, dr = edge thickness, h = primary vertex (h=dm-dr-h'), F, F' = focal points, H, H' = principal points; Tolerances: focal length f: ±2% image distance s': ±2%

Note: Dmech: outer mount, DCA: clear aperture, Doptical: optical size, RR: retaining ring

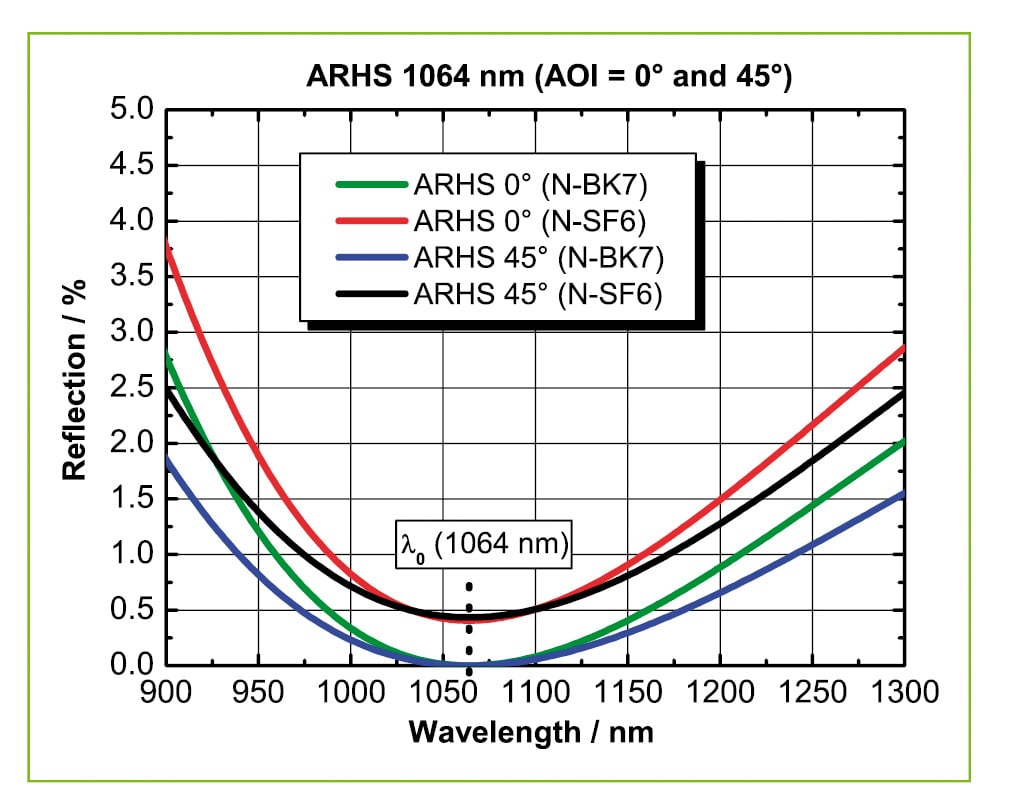

Specifications broadband anti-reflective coating ARB2 YAG 1064 nm:

Guaranteed residual reflection at central wavelength λ₀: < 0.2 % for angles of incidence 0° ≤ AOI ≤ 15° or < 0.5 % for AOI = 45° (unpolarized) Damage threshold H_∞ > 50 J/cm² for 11 ns laser pulses (s‑on‑1) at 1064 nm and 10 HzDesign adaptable to the spectral range of 300 nm ≤ λ ≤ 2200 nm and to higher angles of incidence Design adaptable to the spectral range of 300 nm ≤ λ ≤ 2200 nm and to higher angles of incidence
