OCT Data Acquisition Boards
Excelitas' line of Axsun Data Acquisition (DAQ) boards are designed and optimized specifically for swept-source OCT systems powered by our market-leading swept laser. Avoid costly unknowns associated with interfacing a 3rd party general purpose digitizer – Axsun’s Integrated Engine solution frees your valuable resources to focus on your application and end-user experience.
Excelitas offers 500MS/s 12-bit data acquisition boards with three interface options: Gigabit Ethernet, PCIe, or CameraLink. The Axsun Integrated Engine – incorporating swept laser, k-clock generation, balanced photoreceivers, and high-speed data acquisition board – is available at either 1060nm or 1310nm and with either 50kHz or 100kHz A-line rates.
Gigabit Ethernet DAQ
SYSTEM SIMPLICITY, UNMATCHED PORTABILITY
Experience the most straightforward system integration possible with your application-specific scanner and your OCT software and user interface. The Ethernet DAQ supports 2D/3D synchronization with your galvanometers, MEMS scanners, or rotational probes over a wide range of frame rates. An on-board FPGA streams processed OCT images to offload your host CPU and your development team. The Ethernet interface and tight integration with the Axsun swept laser, k-clock, and balanced photoreceivers facilitate a cost-effective SS-OCT imaging engine with unprecedented ease of deployment on mobile computing platforms. For integration with USB 3.0-only host platforms, the Ethernet DAQ is also compatible with widely available 1GbE–USB 3.0 interface converters based on the Realtek RTL8153 chipset.
PCIe DAQ
ANOTHER INTERFACE, SAME CARD

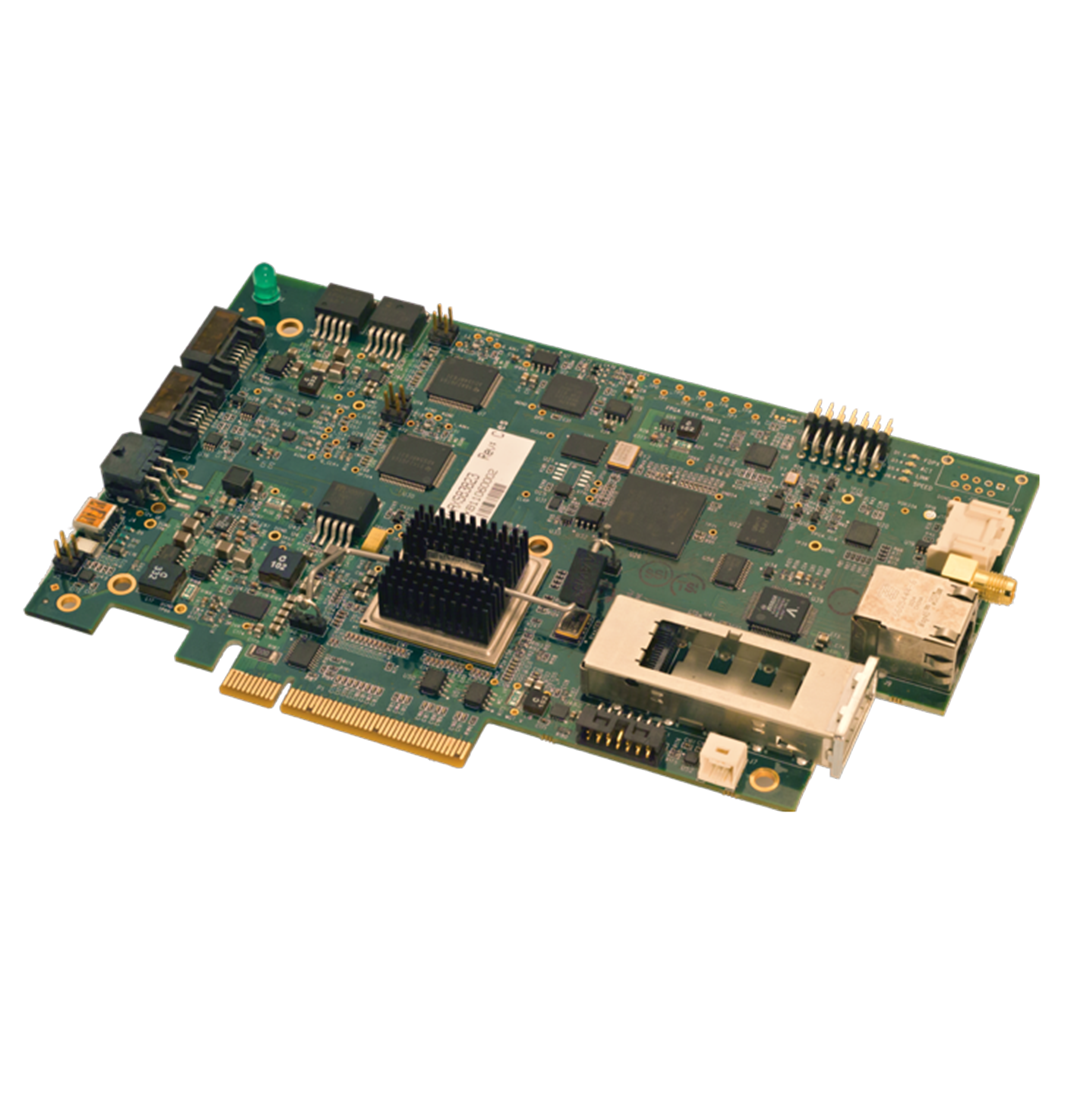

Our Axsun Gigabit Ethernet DAQ is also a PCIe DAQ – you get both interface options in the same hardware, no compromises. If your system implementation requires installation in the PCIe slot of a traditional desktop PC’s motherboard, the DAQ can accommodate. Plus the Ethernet and PCIe interfaces use the same API, so even switching between them is straightforward.
CameraLink DAQ
UPGRADE FROM SPECTRAL DOMAIN OCT
Ophthalmic markets are demanding the enhanced scan depth and penetration afforded by our Axsun SS-OCT lasers at 1060nm. The Axsun CameraLink DAQ provides a straightforward path to upgrade from your legacy spectrometer-based OCT system to the Axsun swept laser while leveraging your existing CameraLink frame grabber and associated capture and processing software.
Number of Channels: 1 or 2
Sampling Rate: up to 550 MS/s
ADC Resolution: 12 bits
Sample Clocking: Direct K-clock from laser
On-board FPGA OCT Image Processing
SDK includes GUI Tools and API w/ Sample Code
Simple scanner integration via Image_sync input
Power Consumption: ≤ 3 A @ 12 VDC
Download Axsun OCT Data Acquisition Board datasheet
Access our online Knowledge Base for Axsun Technical Support Documentation and User Manuals.
