Excelitas Thermopile TPiS 1T 1256 L5.5 DigiPile Sensor
PART/ TPiS 1T 1256 L5.5

TPiS 1T 1256 L5.5 DigiPile Sensor

The Excelitas TPiS 1T 1256 L5.5 DigiPile Sensor features a Thermopile sensing chip connected to an internal ADC for amplification and digital conversion. All included in TO type housing with integral lens.

In the tradition of our continued focus on innovation and digitization The Excelitas TPiS 1T 1256 L5.5 DigiPile™ provides for a Thermopile with digital 17-bit output. The complete range of DigiPile Detectors is offered with our patented ISOthermal performance.

Within the bit stream the thermopile signal is followed by another signal given by an internal temperature reference diode. The digital output results in low interference of electric disturbance enabling optimal performance across many applications and integrations.

Features

  • Digital Output Sensor
  • 17 Bit Tobj Output “direct link”
  • 14 Bit Tamb Output “direct link”
  • Operating voltage down to 2.4V
  • Low current consumption
  • Lens optics
  • Isothermal housing

Typical Applications

  • Non-contact temperature measurements
  • Thermometry

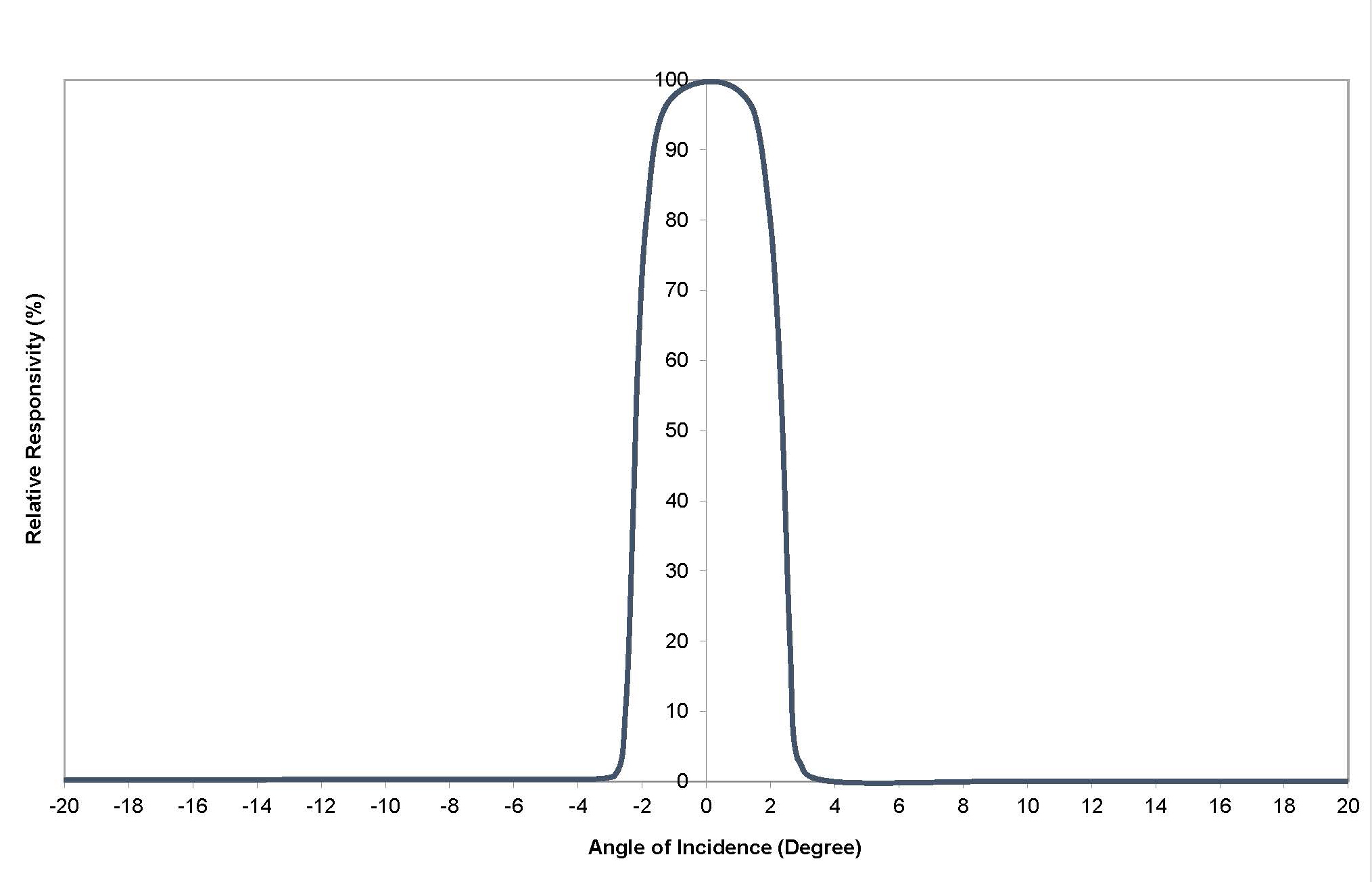

ProductPhoto_IR_TPiS 1T 1256 L5.5_FOV.jpg



TPiS 1T 1256 L5.5



  • Operation Voltage: 2.4-3.6V
  • Sensitivity S100: 85 Counts/K
  • Noise: 8 Counts/K
  • Time Constant: 45 ms
  • Housing with optical window: TO-5
  • Field of View: 5°



TPiS 1T 1256 L5.5



  • Operation Voltage: 2.4-3.6V
  • Sensitivity S100: 85 Counts/K
  • Noise: 8 Counts/K
  • Time Constant: 45 ms
  • Housing with optical window: TO-5
  • Field of View: 5°
